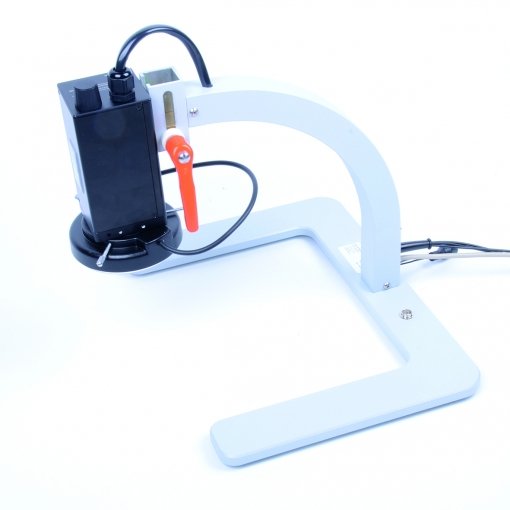

The BasicInspector is the most basic and cost-efficent variant of our inspection systems without any loss of image quality or resolution.
The system uses the same camera as our EasyInspector, i.e. images are shown at Full-HD resolution (1920x1080 pixels) with 30 FPS (frames per second) on a 24" TFT display.
The LED ring light fitted at the camera provides the optimal illumination of the objects. Due to its lightweight design, the BasicInspector can be carried around easily.
When used with a suitable framegrabber supporting this format, the images can also be saved with the IMXpro software.
Characteristics |
Can be upgraded with: |
|
|
Technical Details
Dimensions (WxLxH) | ca. 320mm x 350mm x 320mm |
Degree of protection | IP40 |
Weight | 2300g |
Protection class 3 | DIN EN 61140, VDE 0140-1 |
Ambient temperature | max. 45°C |
Supply voltage | 12V DC |
Power input | 1.5 A max. |
Connection | YPbPr (HDTV) |
Camera technology | 1-Chip CCD with digital signal processor |
Horizontal resolution (TV lines) | 1080 |
Camera resolution | 1920 x 1080 |
Colour depth | 24bit RGB |
Video signal | YPbPr (FullHD 1080i) |
Magnification | ca. 155x on 24" monitor |
Zoom factor | 10x optical and 12x digital |
Focal distance (standard) | min. focus range 40mm focus distance 160 +/- 20mm |
